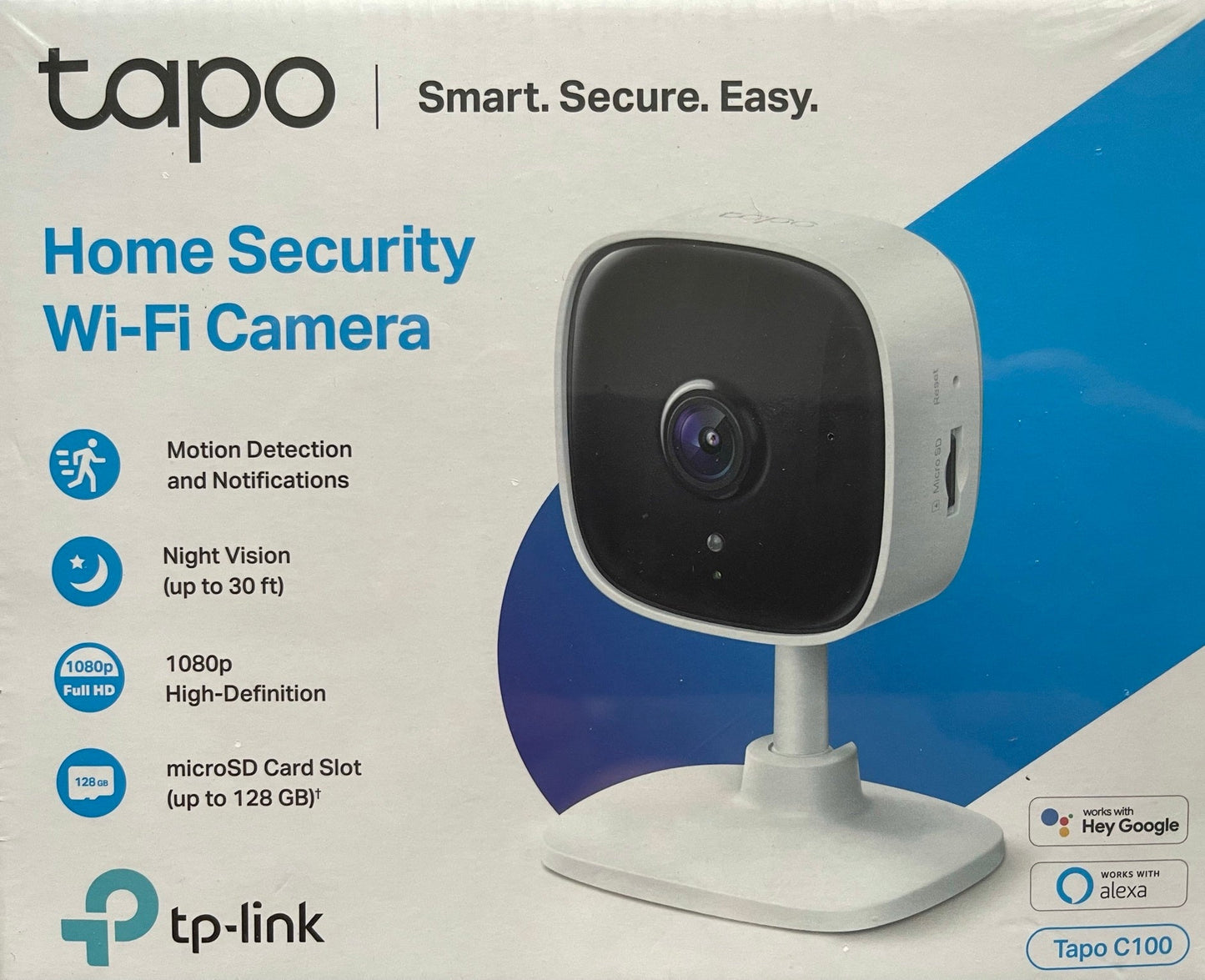

Smart Home - TP-Link Tapo C100 Smart Home Security

ACTIVITY NOTIFICATIONS

Input Trigger

Motion detection

Output Notification

Push notification

VIDEO

Video Compression

H.264

Frame Rate

15 fps

Video Streaming

1080p

SYSTEM

Regulatory Certification

FCC, IC, CE, NCC

System Requirements

iOS 9+, Android 4.4+

ENVIRONMENT

Operating Temperature

0-40 °C (32-104 °F)

Storage Temperature

-40-70 °C (-40-158 °F)

Operating Humidity

10-90% RH Non-Condensing

Storage Humidity

5-90% RH Non-Condensing

PACKAGE CONTENTS

Package Contents

Tapo C100 Camera
DC Power Adapter
Quick Start Guide
Mounting Screws
Mounting Template

HARDWARE

Button

Reset button

Indicator LED

System LED

Adapter Input

100-240V AC, 50/60 Hz, 0.3 A

Adapter Output

9.0 V, 0.6 A

Dimensions (W x D x H)

2.7 x 2.1 x 3.9 in. (67.6 x 54.8 x 98.9 mm)

CAMERA

Image Sensor

1/3.2"

Resolution

1080p Full HD

Lens

F/NO: 2.0, Focal Length: 3.3 mm

View Range

105°

Night Vision

850 nm IR LED (up to 30 ft)

AUDIO

Audio Communication

2-way audio

Audio Input & Output:

Built-in microphone and speaker

NETWORK

Security

128 bit AES encryption with SSL/TLS

Wireless Rate

11 Mbps (802.11 b)
54 Mbps (802.11 g)
150 Mbps (802.11 n)

Frequency

2.4 GHz

Wireless Security

WEP, WPA, WPA2-PSK
